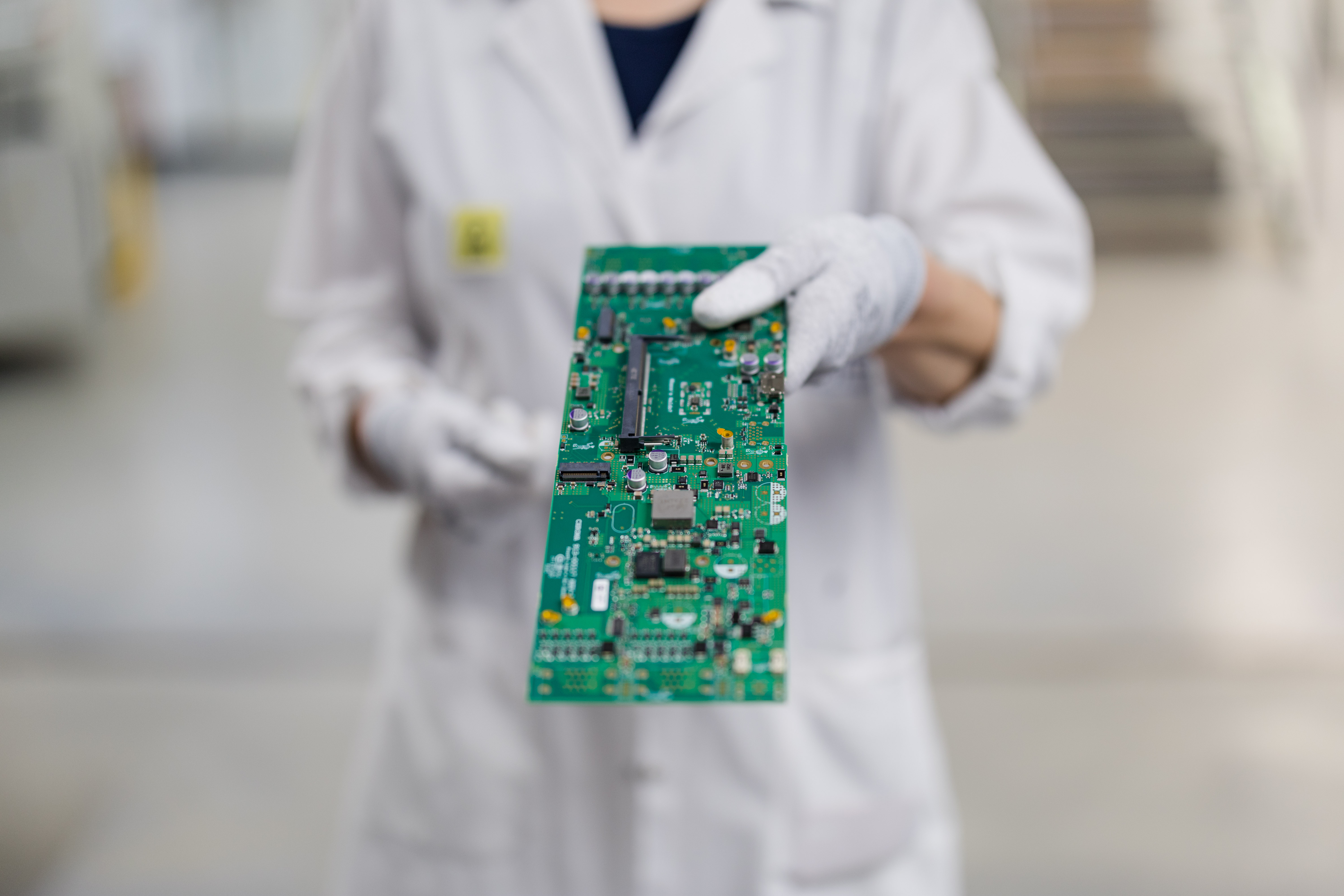

Designing a PCB is an art, manufacturing it is a science.

Even the most brilliant circuits can fail on the production line if they don't follow Design for Manufacturing (DFM) and Design for Assembly (DFA) principles.In collaboration with Professor Shlomi Zigdon, HFA presents the top 10 mistakes we see on the assembly floor. ​

1. Insufficient Thermal Relief​Connecting a pad directly to a large copper plane without "thermal spokes" acts as a heat sink. During soldering, the heat is sucked away, leading to "cold joints" or Tombstoning (where a component stands up like a gravestone). ​

2. Acid Traps (Acute Angles)​When traces meet at angles sharper than 90 degrees, chemicals used in the etching process get trapped in the "V." This can eat away the trace over time, leading to intermittent failures months after the product is sold. ​

3. Solder Mask Defined vs. Non-Solder Mask Defined Pads​Using the wrong pad definition for BGA components can lead to pads lifting off the board or solder bridging. Choosing the right one depends entirely on the pitch of your components. ​

4. "Copper Slivers"​Small, thin "islands" of copper left over during the design process can peel off during manufacturing and float around the board, causing random short circuits that are nearly impossible to debug. ​

5. Inadequate Clearance for Robotic Nozzles​If a tall component (like an electrolytic capacitor) is placed too close to a small SMD part, the robotic pick-and-place head may not have the clearance to seat the part properly, forcing expensive manual assembly. ​

6. Missing or Incorrect Fiducial Marks​Without clear, copper-defined fiducial marks, HFA’s automated machines cannot "align" themselves to your board's coordinates. This leads to offset components and poor solder alignment. ​

7. Vias-in-Pad Without Capping​Placing a via directly on a component pad without "plugging" it acts like a straw, sucking the solder away from the component and into the hole, leaving an open circuit. ​

8. Silkscreen on Solder Pads​Printing part labels or logos over a solder pad prevents the solder from bonding to the copper. This is a classic "rookie" mistake that leads to instant assembly failure. ​

9. Poor Drill-to-Copper Spacing​Placing a hole too close to a trace or internal plane can cause the drill bit to "wander" slightly and nick the copper, creating a short circuit inside the layers of the board. ​

10. Ignoring the "Component Courtyard"​Every component needs a "safety zone." Ignoring these boundaries leads to parts physically overlapping or making it impossible for a technician to reach a part for testing or rework.
